The DC Solar Pumps offer the best of both options – Solar Direct & Battery power.
These next-generation pumps have a Built-in Charge Controller – there isn’t an additional controller box that needs to be installed. The Brushless Motor offers efficiency and longevity of your pump.
Features
- 100% OFF GRID Solution
- NO Batteries or AC Required
- NO Timers required
- Variable Speed Brushless DC Motor
- Integrated MPPT Controller
- Easy installation and easy operation, connect with solar panel directly, no need external controller
- Can be powered by both solar panel and battery
- Brushless permanent magnetic motor, controller inside, long working life and high working efficiency

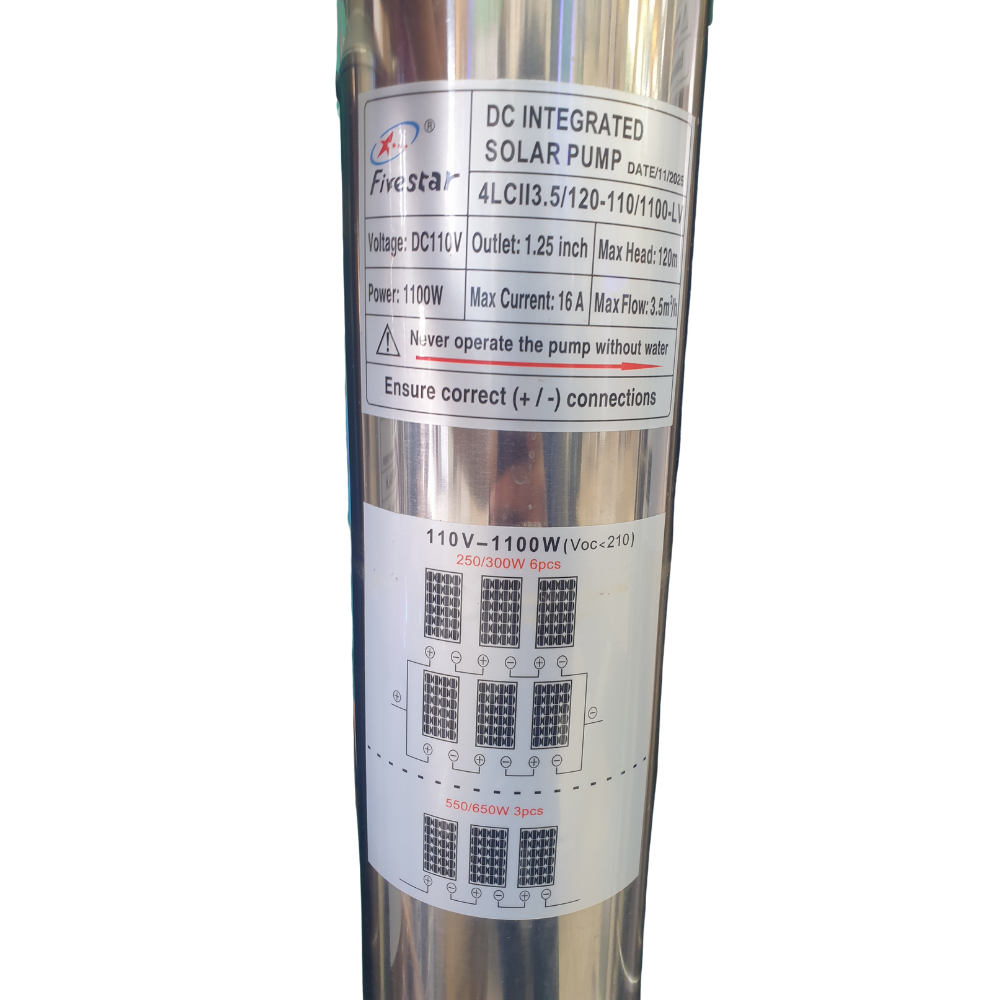

Solar panel recommendations
- 6 x 250W Panels.
- 6 x 300W Panels.
- 3 x 550W Panels.
- 3 x 650W Panels.

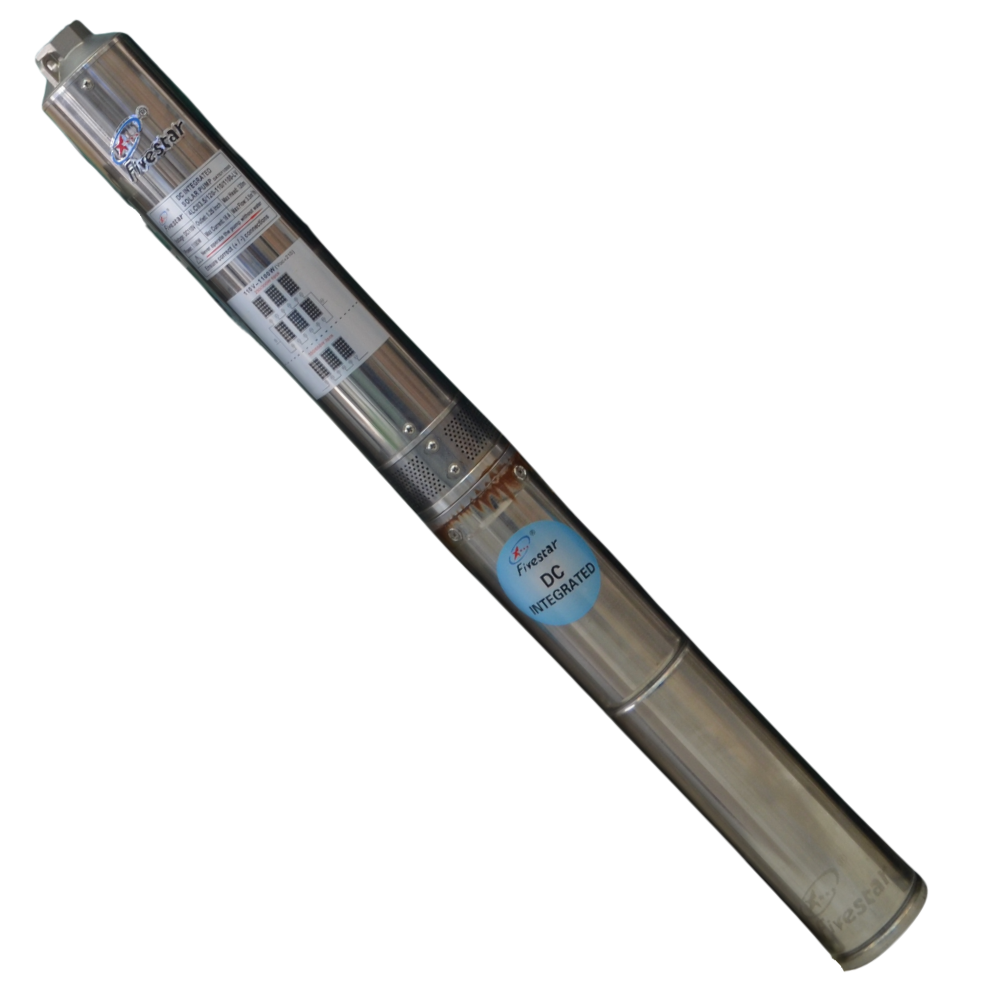

Model: 4LCII3.5/120-110/1100-LV
- Voltage: 110V
- Power: 1100w
- Max Flow Rate: 3.5m³/h
- Max Head: 120 m
- Outlet: 1.25 inch
- Pump Diameter: 76 mm
- Current 16A
- Type of Pump: Impeller
- Integrated Controller
- Over voltage and under voltage protection
- Over current protection
- Locked rotor protection
- Phase deficiency protection
- Reverse protection
- MPPT function (maximum power point tracking)
- Low temperature rise
- Dimensions: 105cm x 15cm x 15cm
- Weight: 14Kg
