The Hybrid AC/DC Solar Pumps offer the best of options – Grid Power & Solar Direct & Battery power. These next-generation pumps have a Built-in Charge Controller – there isn’t an additional controller box that needs to be installed. The Brushless Motor offers efficiency and longevity of your pump.
Features
- 100% ON/OFF GRID Solution
- Powered by both AC and DC
- DC – Solar or Battery
- AC – Grid or Generator
- Variable Speed Brushless DC Motor
- AC/DC Integrated Controller
- Easy installation and easy operation, connect with solar panel directly, no need external controller
- Can be powered by both solar panel and battery
- Brushless permanent magnetic motor, controller inside, long working life and high working efficiency
Solar panel recommendations
- 12 x 250W Panels.
Application
- Irrigation
- Livestock
- Garden Fountains
- Home Supply
- Large Scale Watering System for commercial Establishments
- Water Treatment Systems

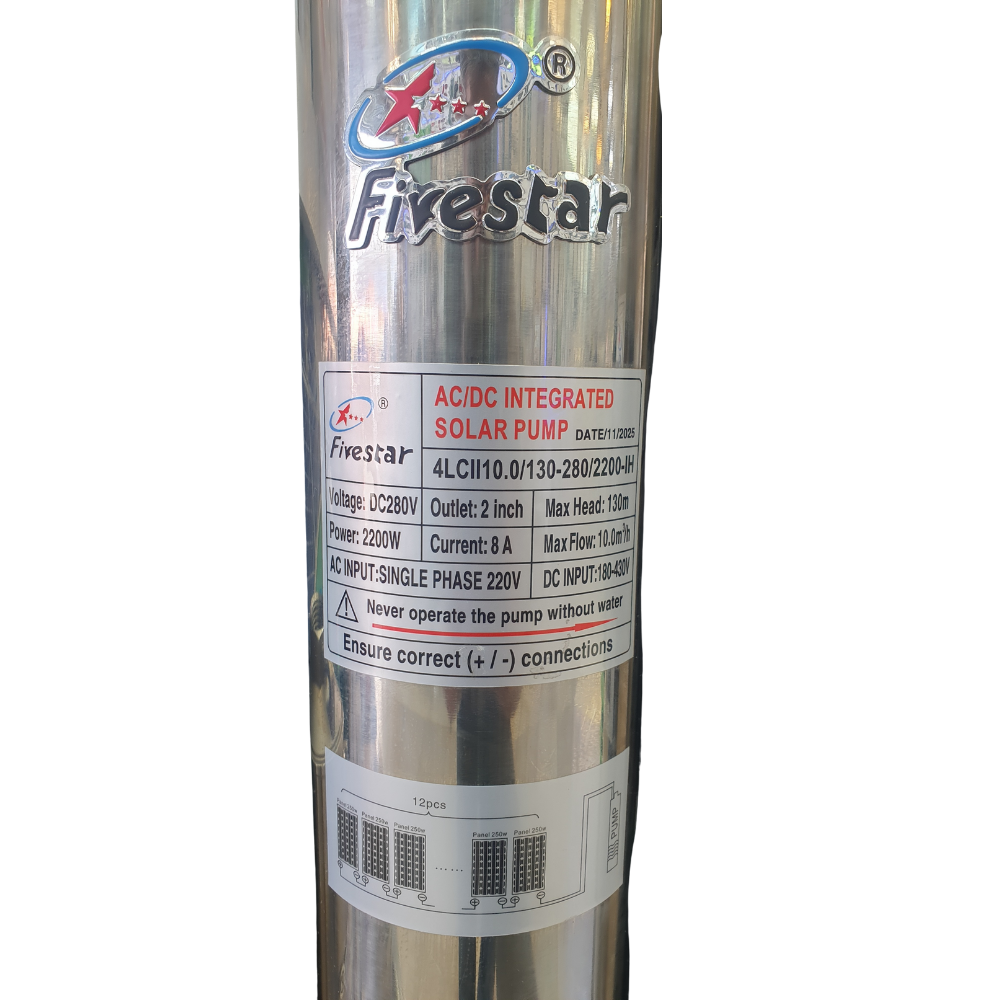

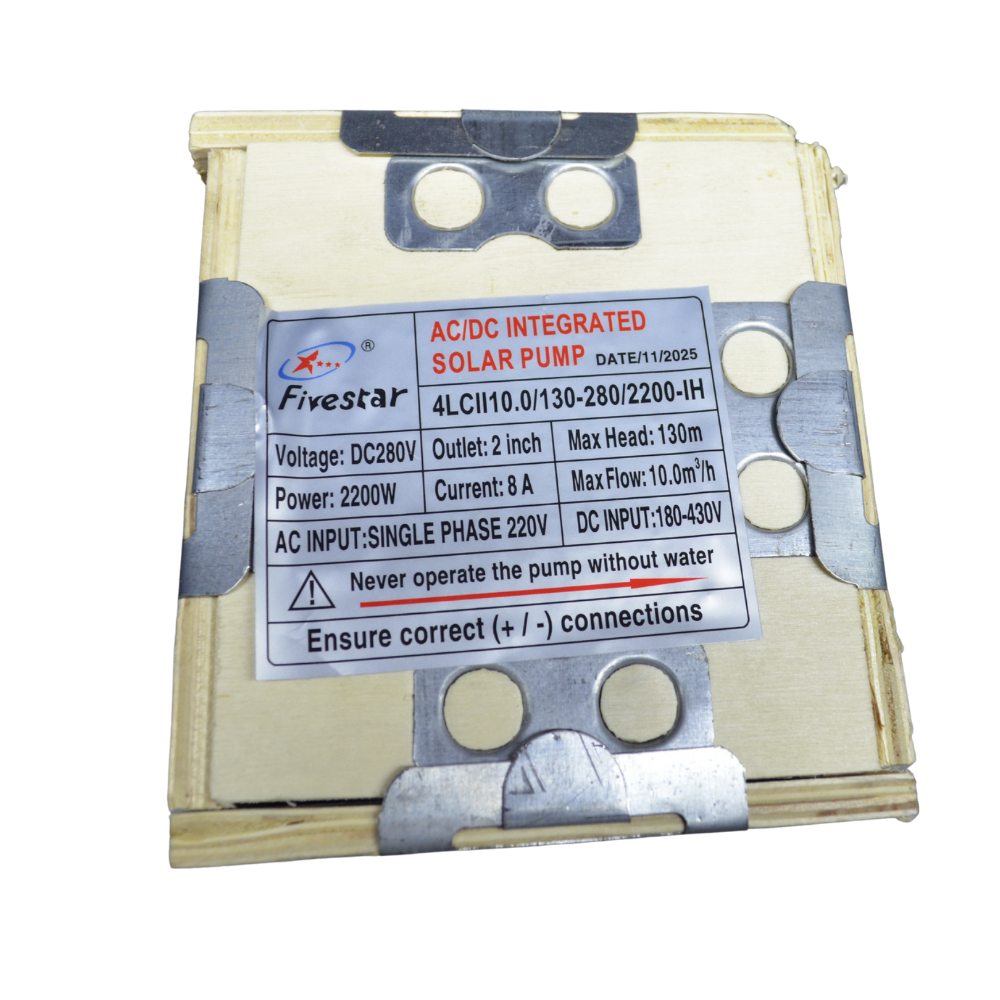

Model: 4LCII10.0/130-280/2200-IH
- AC Voltage: 220V
- DC Voltage: 280V
- Power: 2200w
- Max Flow Rate: 10.0m³/h
- Max Head: 130 m

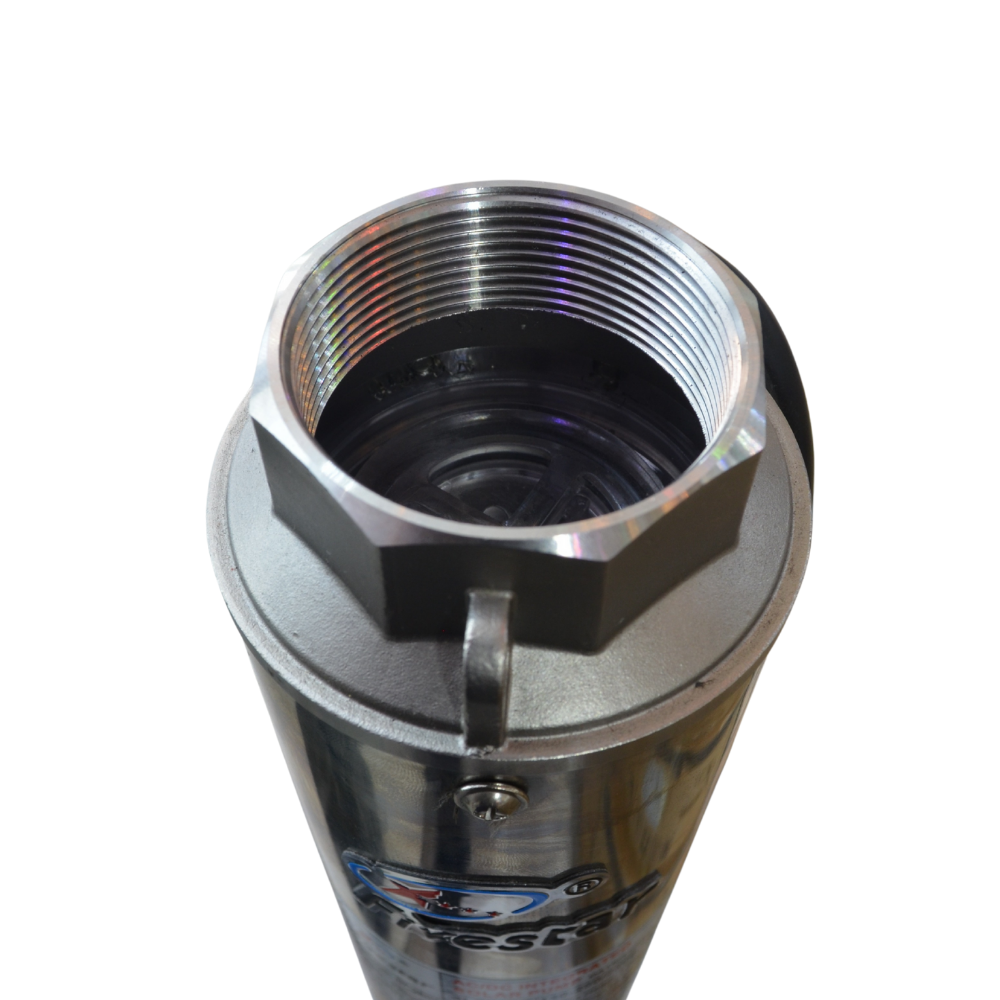

- Outlet: 2.0 inch
- Pump Diameter: 76 mm
- Type of Pump: Impeller
- Integrated AC/DC Controller
- Over voltage and under voltage protection
- Over current protection
- Locked rotor protection
- Phase deficiency protection
- Reverse protection
- MPPT function (maximum power point tracking)
- Low temperature rise
- Dimensions: 140cm x 15cm x 15cm
- Weight: 19Kg
