The Hybrid AC/DC Solar Pumps offer the best of options – Grid power & Solar Direct & Battery power. These next-generation pumps have a Built-in Charge Controller – there isn’t an additional controller box that needs to be installed. The Brushless Motor offers efficiency and longevity of your pump.
Features
- 100% ON/OFF GRID Solution
- Powered by both AC and DC
- DC – Solar or Battery
- AC – Grid or Generator
- Variable Speed Brushless DC Motor
- AC/DC Integrated Controller
- Easy installation and easy operation, connect with solar panel directly, no need external controller
- Can be powered by both solar panel and battery
- Brushless permanent magnetic motor, controller inside, long working life and high working efficiency
Solar panel recommendations
- 8 x 250W Panels
Application
- Irrigation
- Livestock
- Garden Fountains
- Home Supply
- Large Scale Watering System for commercial Establishments
- Water Treatment Systems

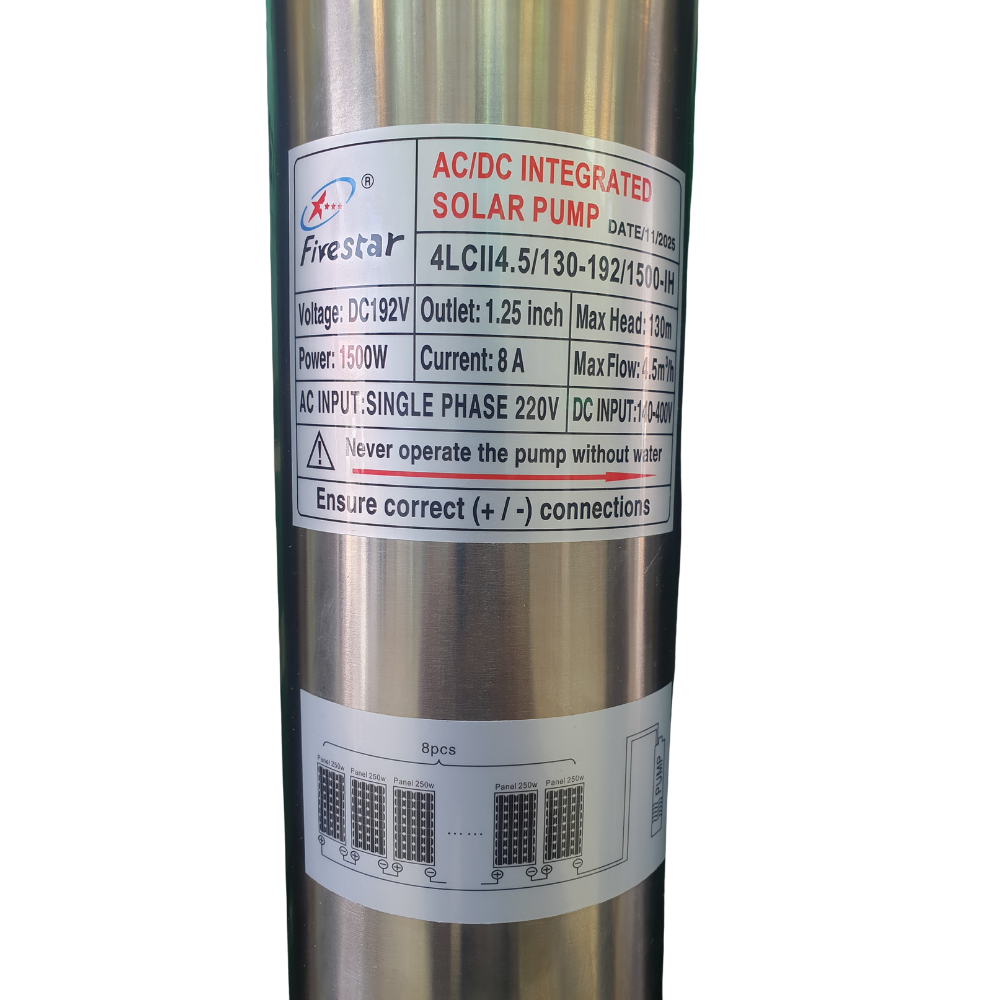

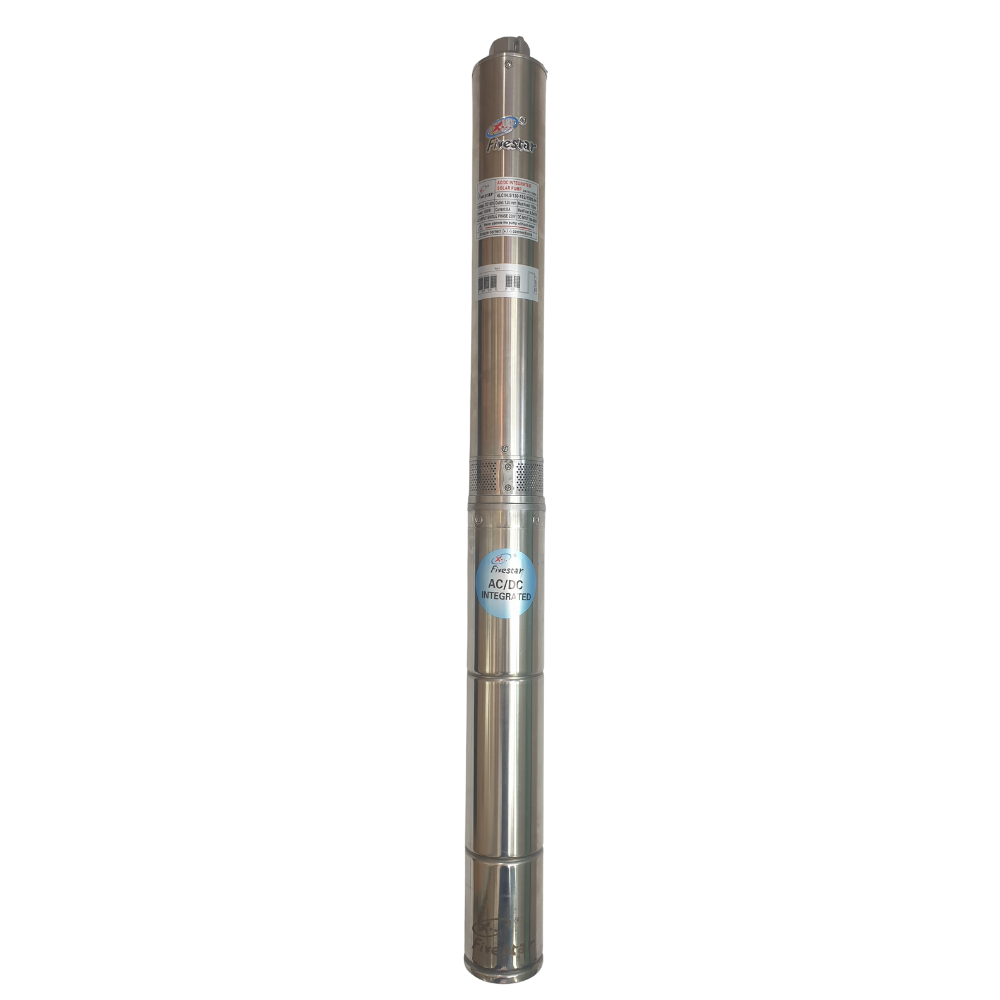

Model: 4LCII4.5/130-192/1500-IH
- AC Input Voltage: 220v Single Phase
- DC Input Voltage: 192v
- Power: 1500w
- Max Flow Rate: 4.5m³/h
- Max Head: 130 m
- Outlet: 1.25 inch
- Pump Diameter: 76 mm
- Type of Pump: Impeller
- Integrated AC/DC Controller
- Over voltage and under voltage protection
- Over current protection
- Locked rotor protection
- Phase deficiency protection
- Reverse protection
- MPPT function (maximum power point tracking)
- Low temperature rise
- Dimensions: 115cm x 15cm x 15cm
- Weight: 16Kg
